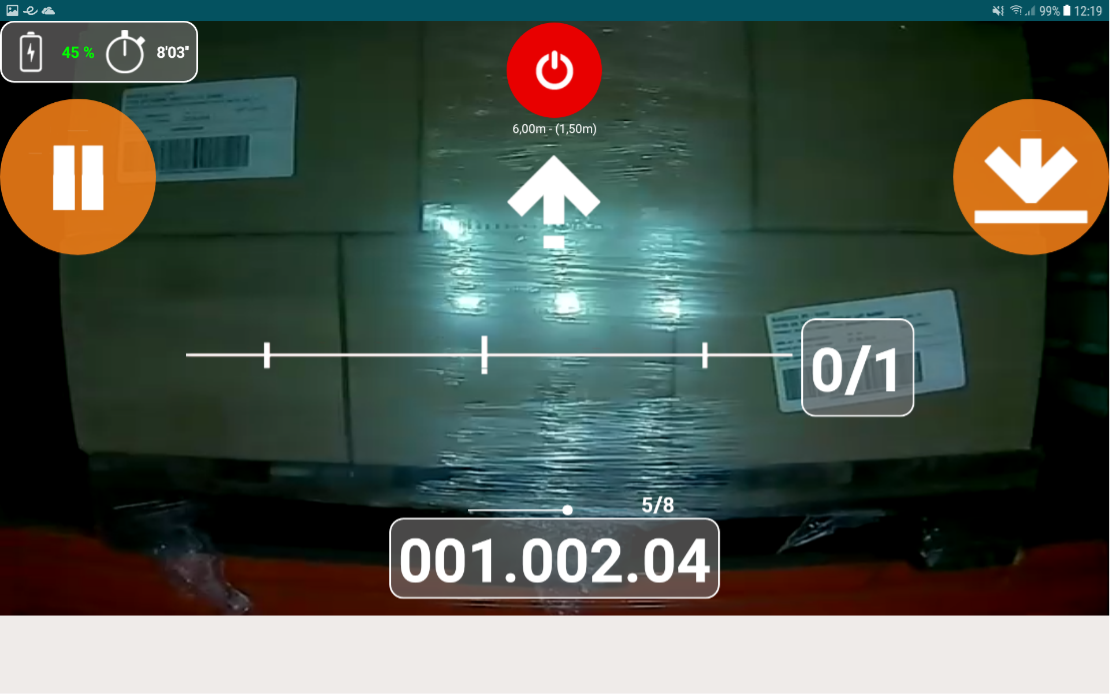

Execute a mission
- In flight
Pause mode during the mission
Request to land before the end of the mission
Percentage of EYESEE Drone battery (Bat) and remaining flight time.
Location code and progress bar. Number of steps performed / Total number of steps

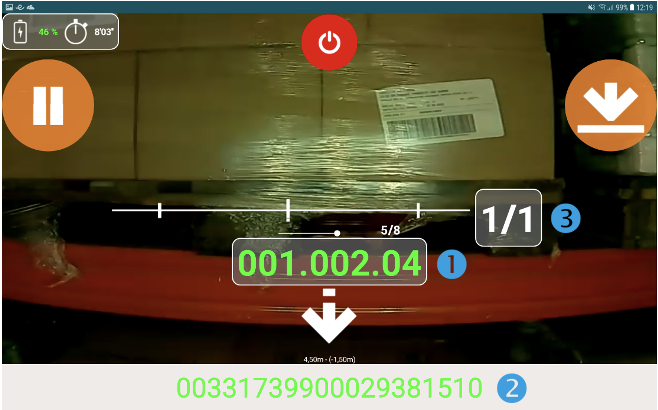

- Execution of a mission, in flight/case of successful barcode reading
- The location code turns green when the code is read.
- The read barcode appears here
- Indicates the number of mandatory acquisitions to be read / on the number of acquisitions read

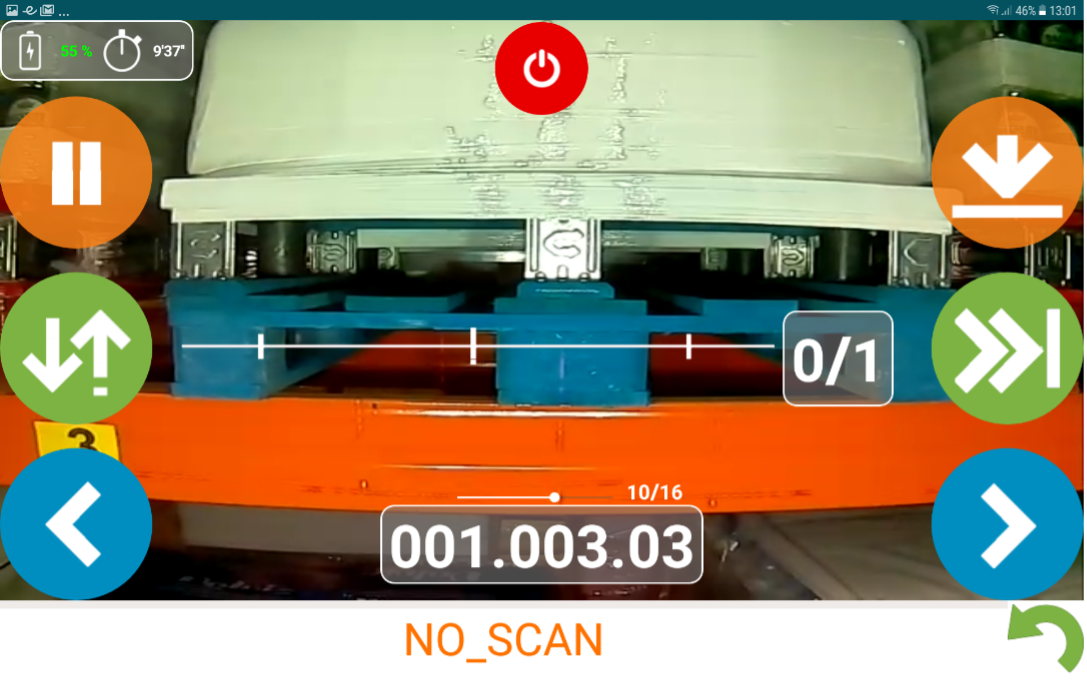

- Execution of a mission, in flight/case of non-reading of a code on a non-empty location
Pause mode during the mission
Request to land before the end of the mission
Gives the order to restart the flight stage
Validate the system proposal and proceed to the next step
Allows you to move EYESEE Drone to the left (see parameter setting)
Allows you to move EYESEE Drone to the right (see parameter setting)
Allows you to switch the choice of drone from NO_SCAN to EMPTY or from EMPTY to NO-SCAN.
In the case of a “mission restart” request, EYESEE Drone will automatically start reading from the first unread barcode before the mission is interrupted and then continue with the remaining mission barcodes.
The possible values are :
« NO_SCAN » When the location is not empty and reading is not possible (absence of the label, unreadable label etc.).
« EMPTY » If the location is empty.

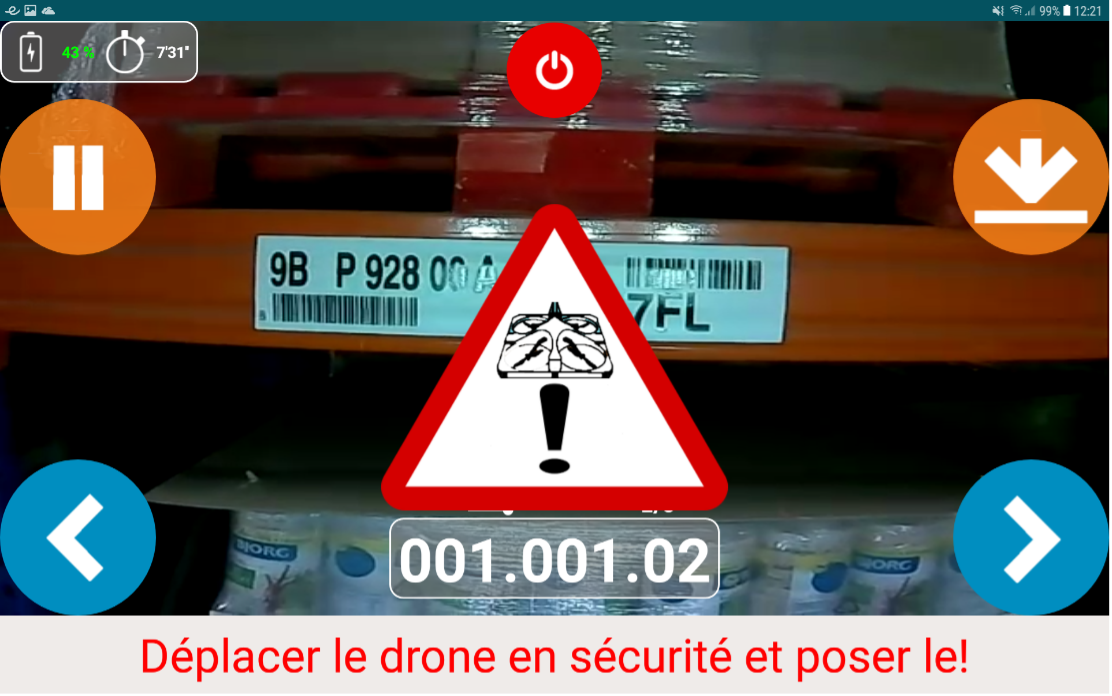

- Case of an obstacle detected under EYESEE Drone
Allows you to move EYESEE Drone to the left (see parameter setting).
Allows you to move EYESEE Drone to the right (see parameter setting)
In case of detection of an obstacle under EYESEE Drone the mission is stopped, and the drone remains in hover flight.
The mission cannot be resumed without a landing of EYESEE Drone.
In this situation the tablet vibrates and emits “beeps” indicating an abnormal situation.
It is the operator’s responsibility to release the area under EYESEE Drone or to delay it to ensure the availability of the landing area and to give the landing order.
