Add a zone

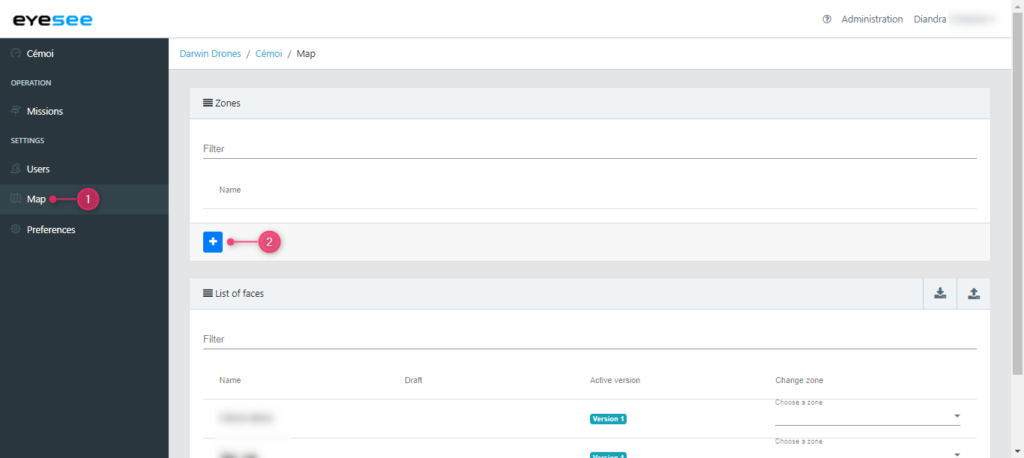

4. From the zones list, click on the add icon

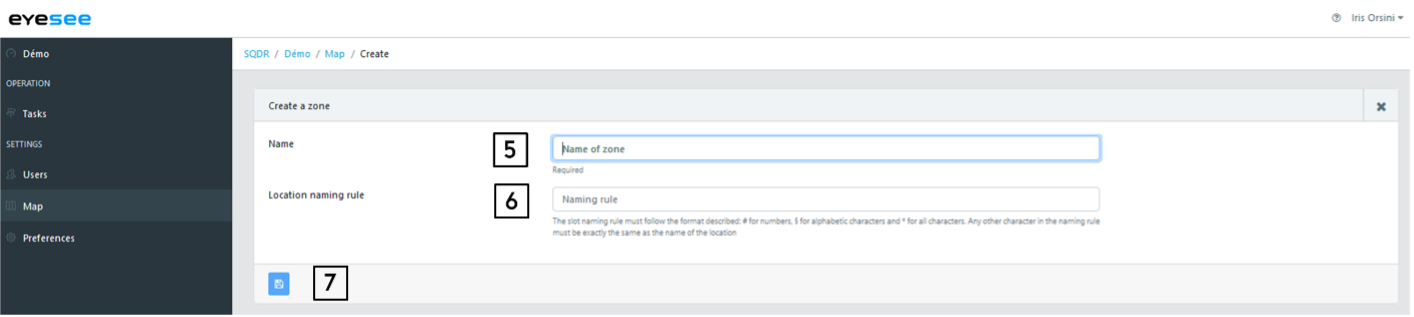

5. Enter a name
6. Define a location naming rule that must be exactly the same as the warehouse location name

Note: This rule is attached to the entire zone. If some locations have a different naming rule, you need to create another zone with another naming rule.

To define this rule:

  • -> alphabetic character or space
  • # -> numbers
  • « * » -> any characters
  • «   » -> space
  • « . » -> dot



For a better understanding, a few naming rules examples:

For a location name C6A P001 10A, the naming rule will be §#§ §### ##§ with spaces, or §#§§§###§##§.

For a location name P5-001-01B the naming rule will be §#*###*##§.

7. Save



For more details:

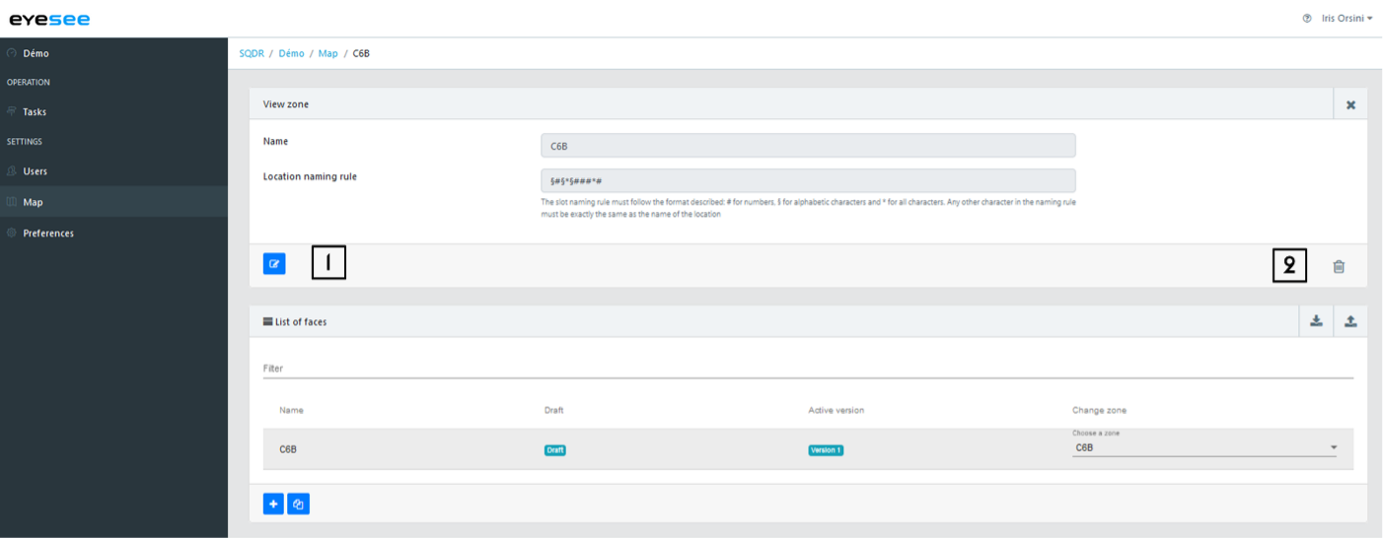

  1. To modify a zone: click on the modification and save.
  2. To delete a zone: click on the delete icon.

Note : A zone can be deleted if no missions are attached to a face. Otherwise, the mission needs to be deleted first, then the face, and finally the zone.
